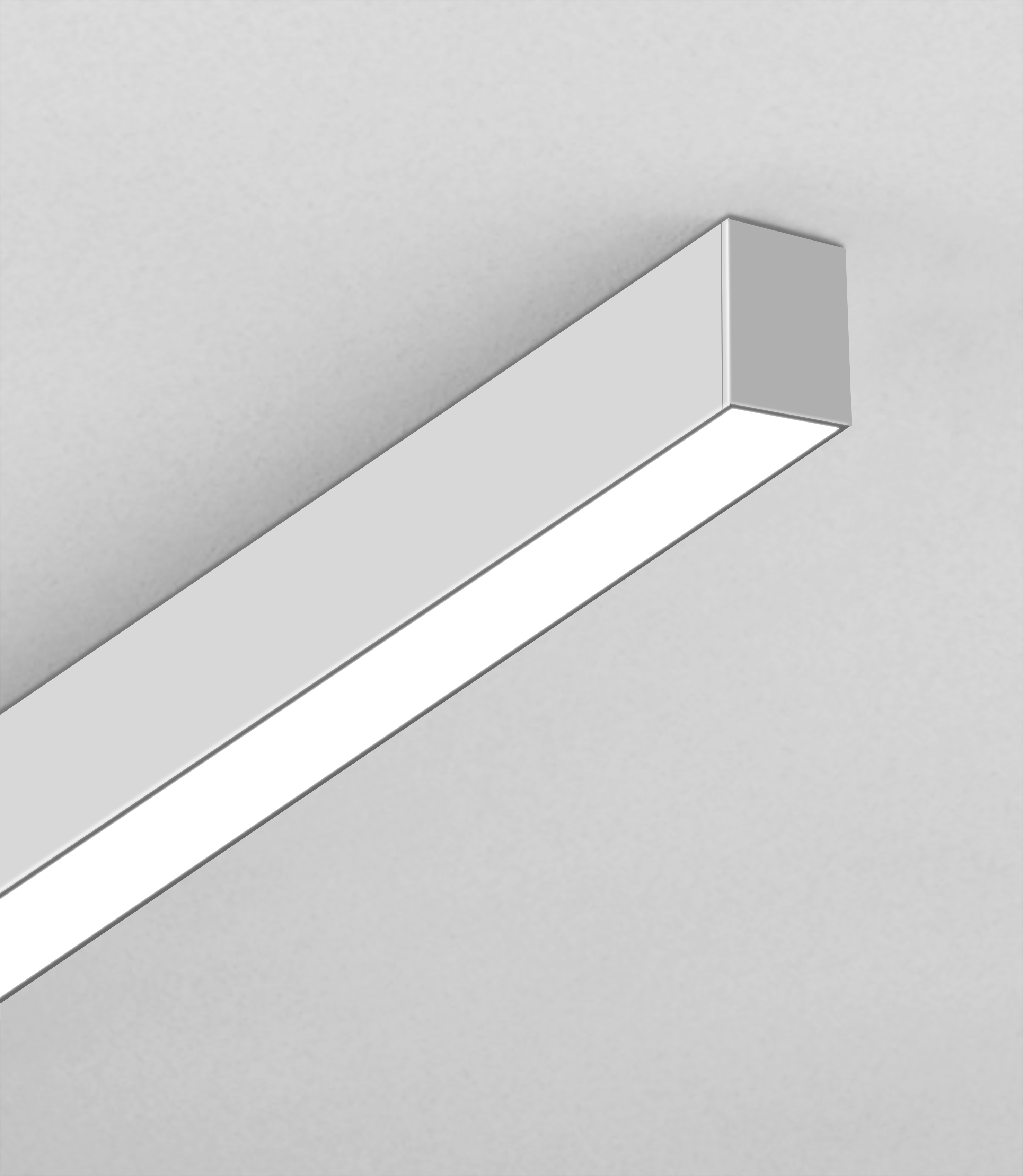

Belle 1 Surface Flush Lens

Direct, Direct/Indirect Architectural LED Linear

$72/PCS-$288/PCS

FEATURES SPECIFICATIONS

Combining superior aesthetics, quality performance and unparalleled versatility, Belle 1 Series offers new opportunities to capture the beauty and benefits of true lighting. With a maximum output of 1200 lm/ft and a choice of various lengths, Belle 1 is capable of delivering the light levels needed for the most demanding applications by CCT adjustable and wattage selectable functions, compatible for dry ceiling and drop ceiling. While simple in appearance.

2 Lighting distributions by visible dip switch
CCT and Wattage adjustable by visible dip switch
Continuous runs or custom pattern
Dry ceiling or T Grid ceiling compatible
Pendant, surface, and wall mount
cUL/UL listed, Damp Locations and 5 years limited warranty

Size	1.8 inch width
Light Source	LED Static
Lumens	Up To 9000LM
CCT	3000K, 3500K, 4000K
CRI	80, 90
Listing	UL, cUL, Damp Rated
Dimming Protocol	0-10V
Reflector Style	Flush Lens
Finish	Black, White
Mounting Type	Surface, Also Available In Pendant, Wall Mount
Voltage Rating	110-277VAC
Fixture Length	2ft, 3ft, 4ft, 8ft Standard
