Helios 3" Round Mud-In Adjustable
HED3 SERIES | Deep Regress Downlights
$100/PCS-$156/PCS
FEATURES
SPECIFICATIONS
Small and powerful runs in this family of 3" aperture recessed downlight that offer up to 1700 delivered lumens. This mini downlight family is complete with high performance and an expansive range of options for optics, trim styles, trim configurations, beam spreads, housings, mounting, and more offering the flexibility your projects require. They are available in an expansive assortment of configurations to provide options for nearly every design requirement. It is a designer's favorite that delivers superior light in every application.
- Architectural Friendly: Up to 50,000 unique combinations
- Adjustable Ring: 360° rotation and a maximum 30° tilt angle
- 2 in 1 Dimming: 0-10V (Dim to 1%) and TRIAC in one package
- COB LED: 4 Fixed CCT 90+ CRI or Dim to Warm 95+ CRI options
- Beam Angle: 4 optics series with 15°~60° options
- Trimmed, trimless with various shades options
- New construction and remodel driver options for any site condition
| Size | 3inch |
|---|---|
| Light Source | LED Static/Dim To Warm |
| Lumens | Up To 1700LM |
| CCT | 2700K, 3000K, 3500K, 4000K, Dim To Warm 3000K-2000K |
| CRI | 90, 95 |

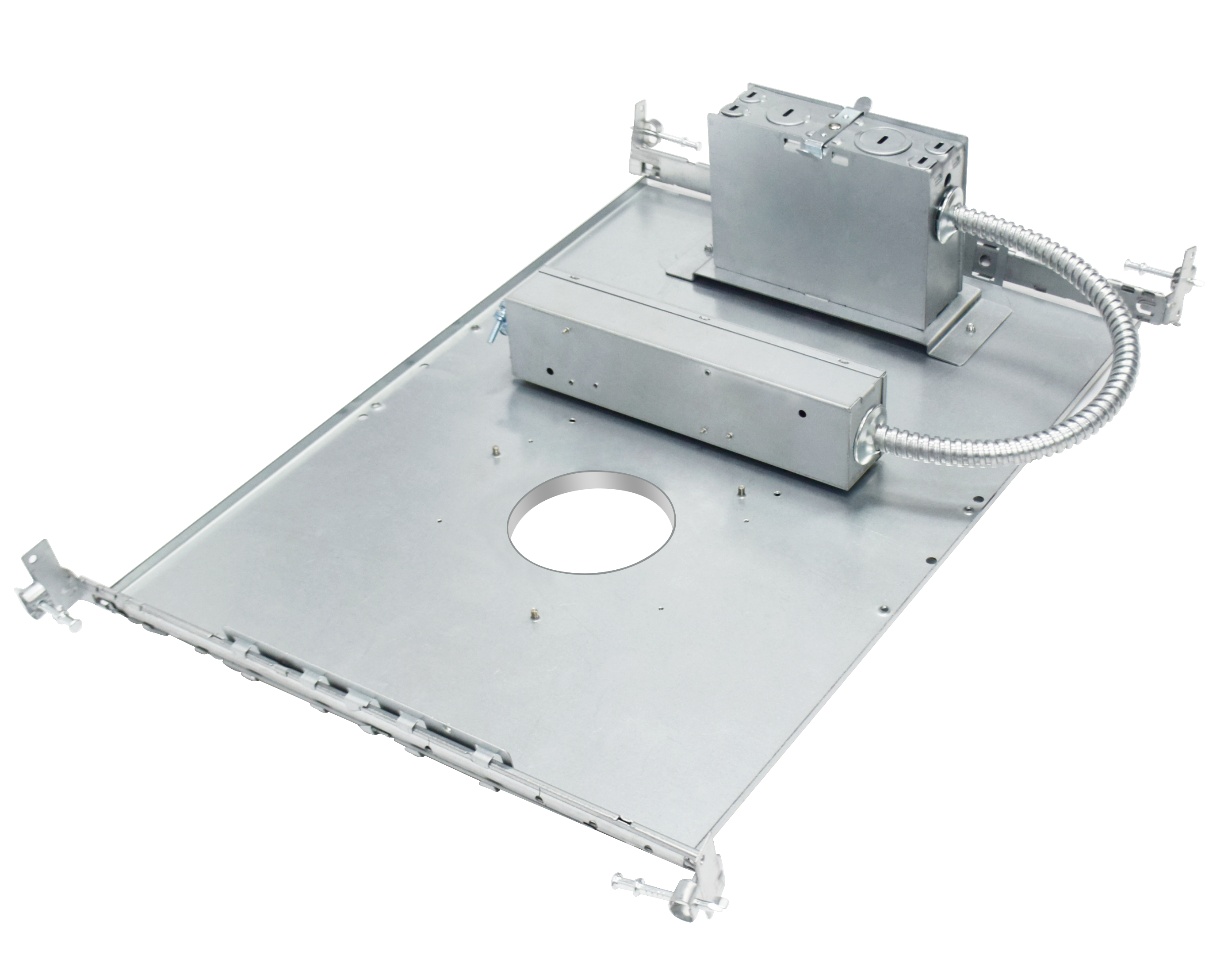

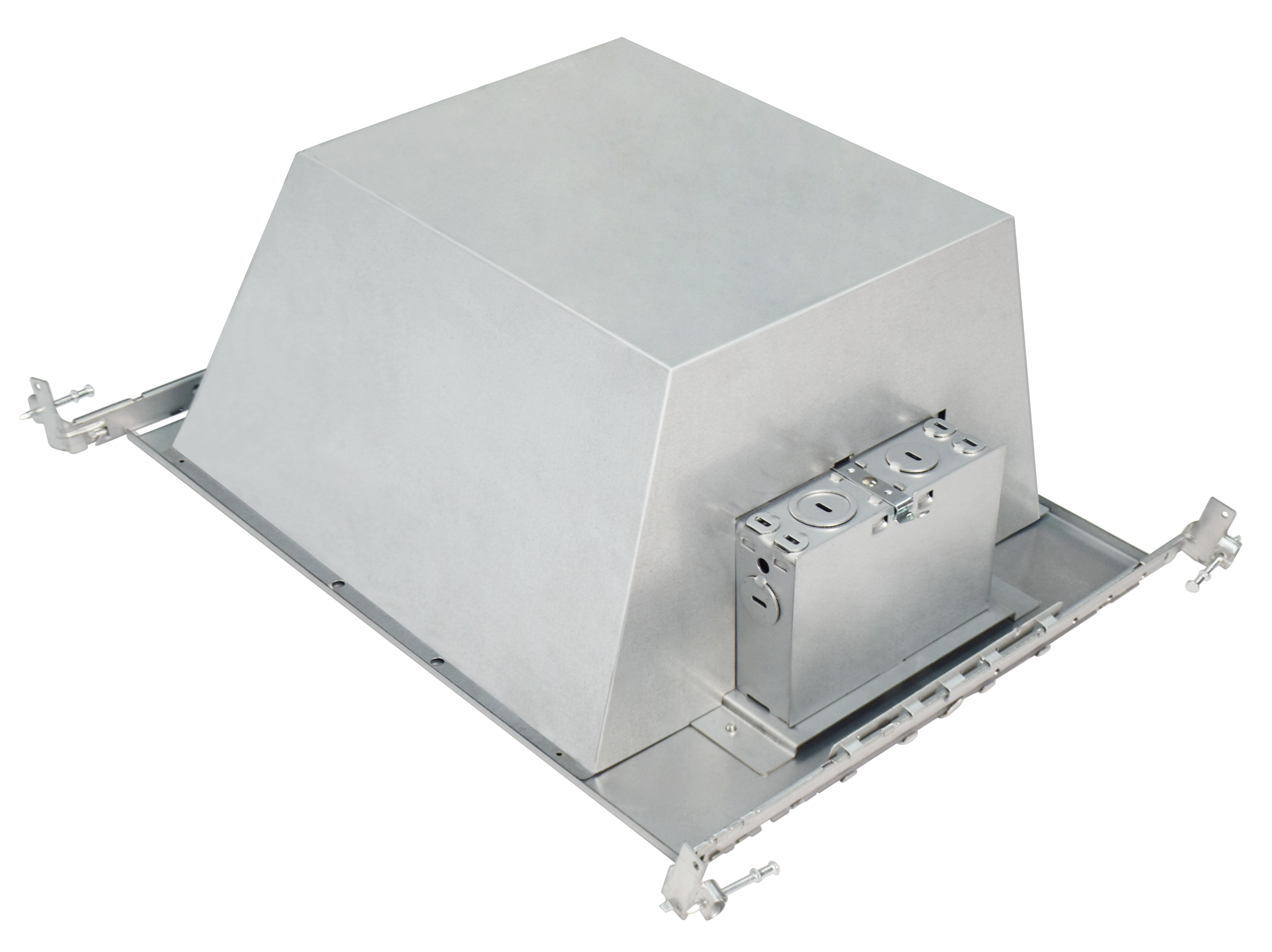

| Product Type | Remodel, New Construction Housing |
| Listing | UL, cUL, Damp Rated |
| Dimming Protocol | 0-10V, Triac |
| Trim Style | Adjustable, Fixed |
| Color | Black, White, Gold, Chrome |
| Mounting Type | Recessed |
| Voltage Rating | 110-277VAC |
| Fixture Wattage | 19W, 16W, 13W, 10W, 8W, 5W |
INSTALLATION INSTRUCTION
